Additional Features:

• Frequency range: 0.01-40 GHz
• Frequency Resolution 1 kHz
• Frequency Switching Time 40 ms
• Time base stability 0.00000002 /day
• Minimum Output Power -15 dBm
• Maximum Output Power 13 dBm
• Power Resolution 0.01 dB
• Output Accuracy 2 dB
• Output Level Switching Time 20 ms
• Output Impedance 50 Ohm
• Ultra-low SSB phase noise
• Self-test
• Secure mode
• Reset
• Master/slave operation
• User level flatness correction
• 360B SS Mode
• Output Accuracy : 2dB
• Output Accuracy 2 dB
• Output Level Switching Time 20 ms
• Output Impedance 50 Ohm
• Minimum Single-Side-Band Noise -105 dBc/Hz
• Maximum Single-Side-Band Noise -60 dBc/Hz
• Harmonics (noise) -40 dBc
• Non-harmonics (noise) -40 dBc
• Modulation AM,FM,Pulse
• External Modulation Inputs(Types) Yes
• Sweep Modes Alternate,Analog,Power,Step
• Maximum points of step sweep 10000 pt/sec
• User Interface Proprietary
• Ports to Peripheral Devices GPIB
• Test Pattern Storage 9 Patterns

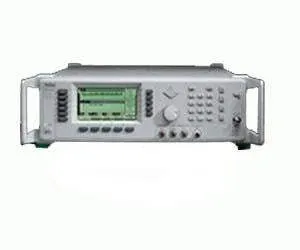

The Anritsu 69169A signal generator is an electronic instrument that generates repeating electronic signals. It contains an electronic oscillator, a circuit that is capable of creating a repetitive waveform.
