Product Details
＋

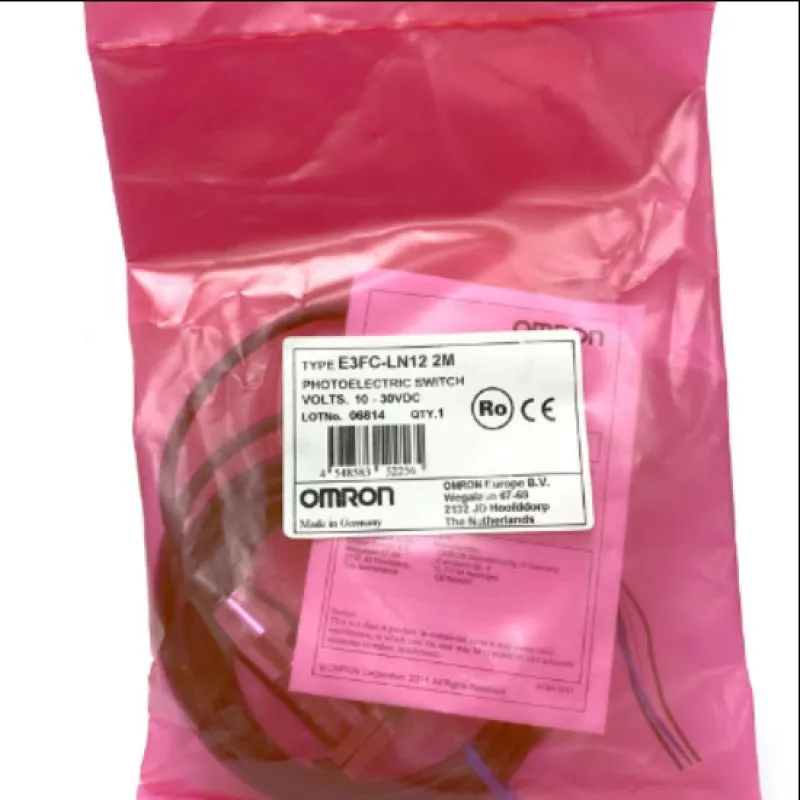

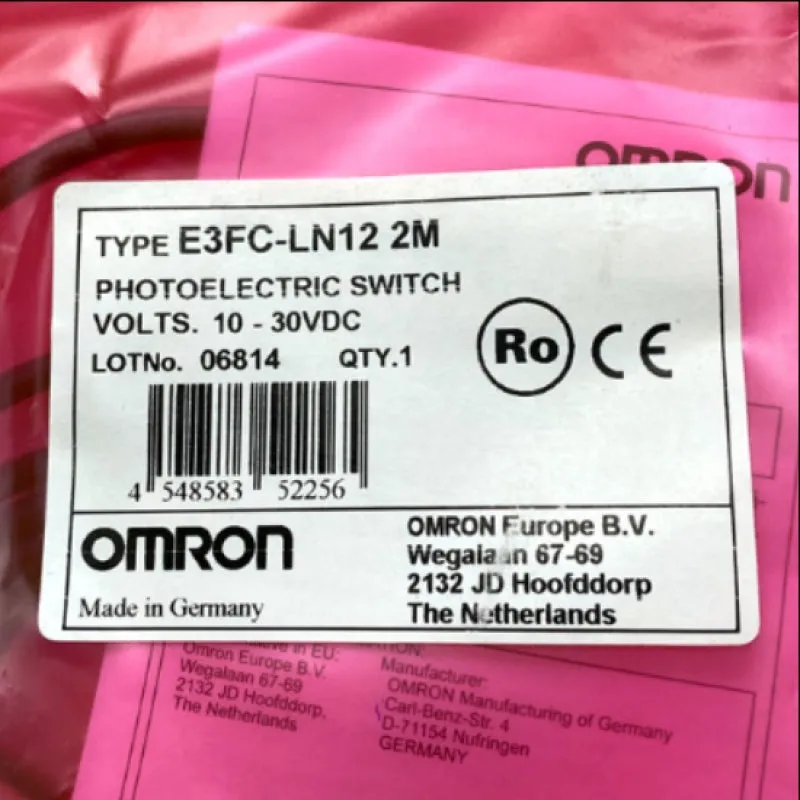

This is an 2m 6ft Omron Compact Photoelectric Sensor. Its part number is E3FC-LN12. This item comes as pictured and does not include any additional parts or accessories.
Benefits:
• Best durability for wash-down applications
• Withstands heat shock conditions
• High grade steel housing (SUS316L)
• Epoxy resin preventing water ingress if connector is not fixed properly
• Proven with various industrial detergents of Ecolab and Diversey
• Bright visible red LED enabling easy alignment
Specifications:
- Manufacture: Omron
- Part Number: E3FC-LN12
- Cable Length: 2m (6.56ft)
- Sensing distance: 200 mm (white paper:300 X 300 mm)
- Spot diameter (reference value): 10 x 15 mm Sensing distance of 200 mm
- Light source (wavelength): Red LED (624 nm)
- Power supply voltage: 10 to 30 VDC (include voltage ripple of 10%(p-p) max.)
- Current consumption: 25 mA max.
- Control output: NPN/PNP (open collector)
- Load current: 100 mA max. (Residual voltage: 3 V max.), Load power supply voltage: 30 VDC max.
- Operation mode: Light-ON/Dark-ON selectable by wiring *1.
- Indicator: Operation indicator (orange) Stability indicator (green)
- Protection circuits: Power supply reverse polarity protection, Output short-circuit protection, and Output reverse polarity protection
- Response time: 0.5 ms
- Sensitivity adjustment: Fixed
- Ambient illumination: Incandescent lamp: 3,000 lx max./ Sunlight: 10,000 lx max.
- Ambient humidity range: Operating: 35 to 85%/ Storage: 35 to 95% (with no condensation)
- Insulation resistance 20 M min. at 500 VDC
- Dielectric strength: 1,000 VAC at 50/60 Hz for 1 min. between current-carrying parts and case
- Vibration resistance: Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y and Z directions
- Shock resistance: Destruction: 500 m/s2 3 times each in X, Y and Z directions
- Degree of protection: IEC: IP67, IP68 *2., DIN 40050-9: IP69K *3
